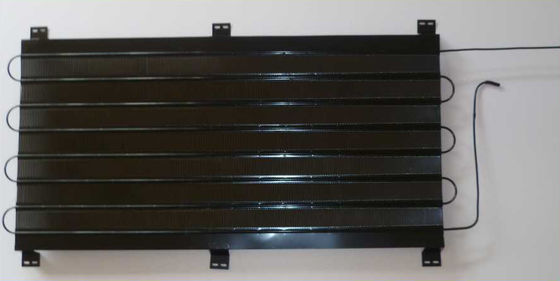

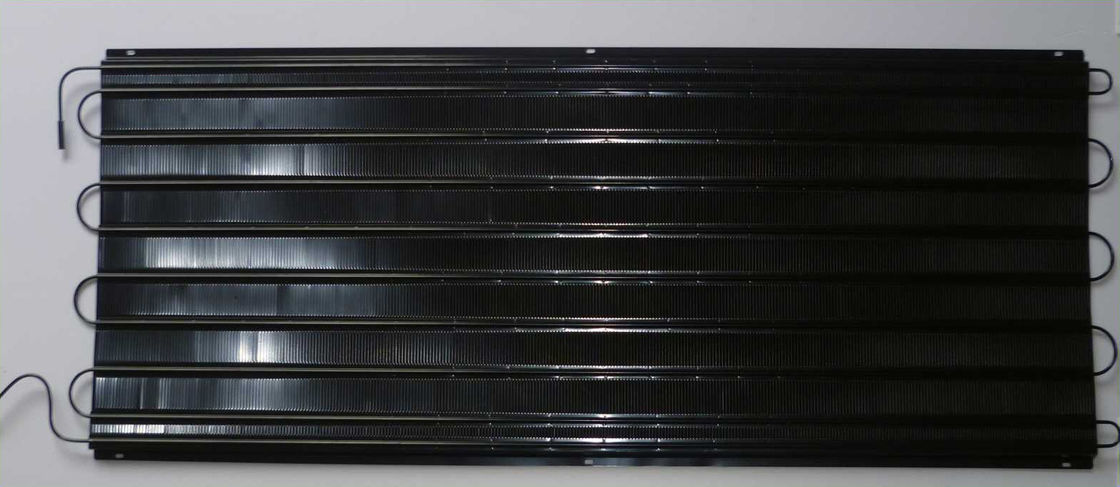

Window Blind Condenser Of Tube Refrigerator Condenser Plate

Product name:

Window Blind Condenser of Tube on Plate Condenser

Raw material:

1. Rolling welded steel tube: Ø4.76 - Ø8x0.71mm

2. Steel plate SPCC thickness: 0.28 to 0.4mm

3. Bracket: Steel plate (SPCC) thickness: 0.6 to 2.0mm

Structure:

1. Floding drum

2. Flat type of wire on tube condenser back mounted

Key process:

Tube bending - Fin puching - Window blind welding - Folding or bending to shape - Fix the bracket - Welding and assemble - Leakage test - Cleaning - Coating - Inspection - Packing

Technical Standards:

We can produce according to the drawing or sample provided by the clients. We can also help the clients design the condenser.

Performance:

1. Surface with electrophoresis coating to prevent the corrosion.

2. Inner cleanness can meet the requirement of R134a & CFC cooling system.

3. The condenser is able to satsify the design cooling capability requirements.
